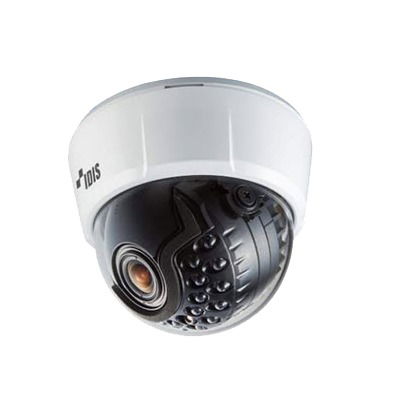

HD-TVI | Full HD | WDR | IR Dome Camera

 General Features:

• Power Source:DC 12V
• Power Consumption: 4.56W
• Dimensions Ø x H: Ø100mm x 80mm (Ø3.94" x 3.15")
• Storage Temperature: -20℃ ~ +60℃ (-4℉ ~ +140℉)
• Operating Temperature:-10℃ ~ +50℃ (14℉ ~ +122℉)

Function Features:

• AGC: 0 ~ 20 Level Adjustable
• Brightness: 0 ~ 20 Level Adjustable
• HSBLC: 1 ~ 20 Level Adjustable
• ACE(D-WDR/ATR-EX): OFF/LOW/MIDDLE/HIGH
• Motion Detection: OFF/ON (4 Zone)
• Privacy Masking: OFF/ON (16 Zone)
• Day & Night: Auto(AGC)/Day/Night/Ext
• Smart -IR(IR OPTIMIZER): 0~15 Level Adjustable
• Mirror: MIRROR,V-FLIP
• D-ZOOM(EZOOM): OFF/ON (x2 ~ x8)
• Language: ENG / CHN / CHN(S) / JPN / KOR

Video Features:

• SFP TRANSCEIVER:1/2.8" SONY 2Mega Exmor CMOS Sensor
• Total pixels: 2000(H) X 1121(V), 2.24M Pixels
• Max. Resolution: 1920X1080
• Scanning Mode: Progressive Scan
• Lens Type: Fixed-focal
• IRIS Control: Fixed Iris
• Min. illumination: COLOR : 0.3 Lux @ F1.2, B/W : 0 Lux (IR LED ON)
• Day/Night: ICR
• IR DISTANCE (LEDs): 10m (18ea)
• Video Out: 1 HD BNC, 1 SD BNC
